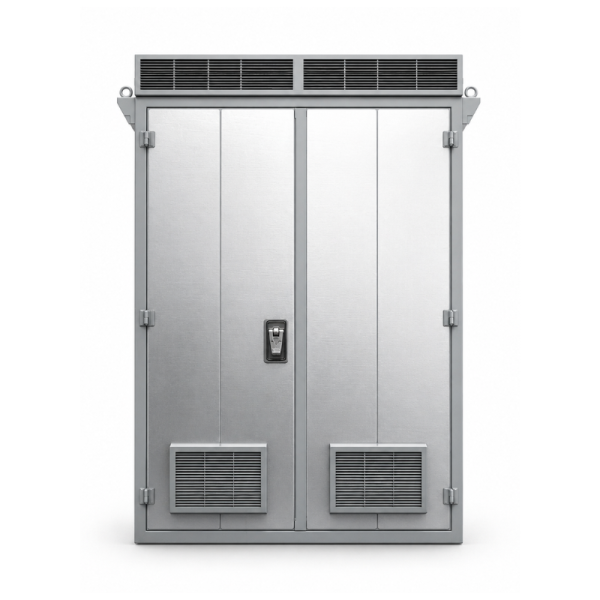

Rainford TrackSafe
See our factsheet for this product: Rainford TrackSafe Signalling Cabinet
Description
Filter: Long life EN1822 hydrophobic ePTFE filter. Designed for dependable performance in demanding rail environments, the CommsafeTM cabinet offers robust protection for essential electronics. Its rugged construction shields sensitive equipment from moisture, dust and smooths temperature variations, ensuring reliable connectivity and operation for critical station information and security systems.
Dimensions (mm): 1754 X 1335 X 810 (HxWxD)
Weight (kg): 225kg Estimated
IN ACCORDANCE WITH:
QMS: ISO 9001 :2015
IP per EN 60529: IP55
TECHNICAL SPECIFICATION
Configuration: 2Bay Mounting
Mounting Format: 19 Inch
U Height: 30 U
Estimated Weight(kg): 225kg
Material: 1.4003 Stainless Steel
Finish: Polyester powder coat
Colour: P192 Light Grey – RAL7035
Features
- Profile Adjustability: Depth adjustable
- Handle Type: T-bar cyclinder lock
- Locking System: 3-point locking plus cam lock
- Lock Type: 221 Cam Lock
- Roof: Peaked, Hinged
- Hinge: Three point lift off hinges
- Door Stays: Captive door stays
- Plinth: 100mm high plinth
- Cable Entry Points: Plain Cable entry gland plates in base of each bay
- Doors & Accessibility: Front Door plus full height removable rear panels
- All weather resilience and optimal thermal management
- Lifting Brackets: Removable upper side mounted
- Earthing: Base mounted main earth point
- Cooling System: Advanced forced air fan and filter system
- Heat Dissipation: 1.0kW to ΔT 10 °C
