Stainless Steel Tunnel Signage

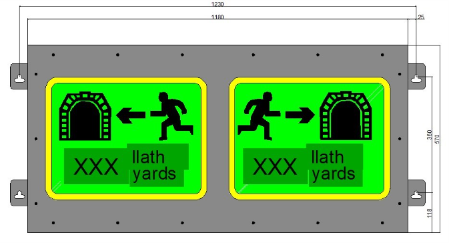

Illuminated road and tunnel signage helps people identify emergency exits and evacuation routes in environments where smoke, dust or power disruption may reduce visibility. Hybrid Connectivity supplies stainless steel signage designed for demanding transport infrastructure, beginning with the Passcomm Wayfinder Reduced Depth Emergency Exit Sign.

Where is stainless steel tunnel signage used?

Illuminated stainless steel signs can be installed in road tunnels, rail tunnels, underground transport environments and pedestrian evacuation routes. They must remain visible, secure and accessible without creating an obstruction, while withstanding moisture, vehicle emissions, vibration, aggressive cleaning and continuous operation.

As well as directing users towards egresses, signs may show health and safety warnings relating to fire and electrical safety, or the need for protective clothing.

Frequently asked questions

Why use stainless steel for tunnel signage?

Stainless steel provides strength, corrosion resistance and long-term durability in environments exposed to moisture, dust, emissions and frequent cleaning. The Wayfinder sign uses brushed 316 stainless steel and places its pictogram behind a clear polycarbonate sheet to help protect it from aggressive cleaning processes.

What requirements should illuminated tunnel signs meet?

The specification should consider viewing distance, luminance, sign dimensions, pictograms, emergency-power arrangements, mounting position and applicable highways or transport standards. Environmental protection, fire-safety requirements and safe access for inspection and maintenance must also be established for the individual tunnel.

How bright is the Wayfinder emergency exit sign?

The sign has been measured using a calibrated light meter to provide an output of 600cd/m² on the white graphics and text. Its internally mounted LED panels provide strong illumination for restricted-visibility conditions while using less electricity than conventional fluorescent fittings.

How long do the LEDs last?

The LED system is rated for a minimum continuous life of 50,000 hours. Its LED assembly is also designed for straightforward installation and removal, helping simplify replacement and maintenance during restricted tunnel-access periods.

Why does the sign have a reduced-depth design?

The enclosure is only 35mm deep and has been designed without projecting sharp edges or end faces. This allows it to be positioned close to pedestrian walkways and evacuation routes while reducing the risk of obstruction or accidental contact.

Is the Wayfinder sign suitable for tunnel conditions?

Yes. The IP66-rated enclosure provides protection against dust and powerful water jets, while its 316 stainless steel construction supports long-term use in demanding tunnel environments. Developed for the Brynglas Tunnel, the sign should still be assessed against the mounting, electrical, visibility and compliance requirements of each project.
